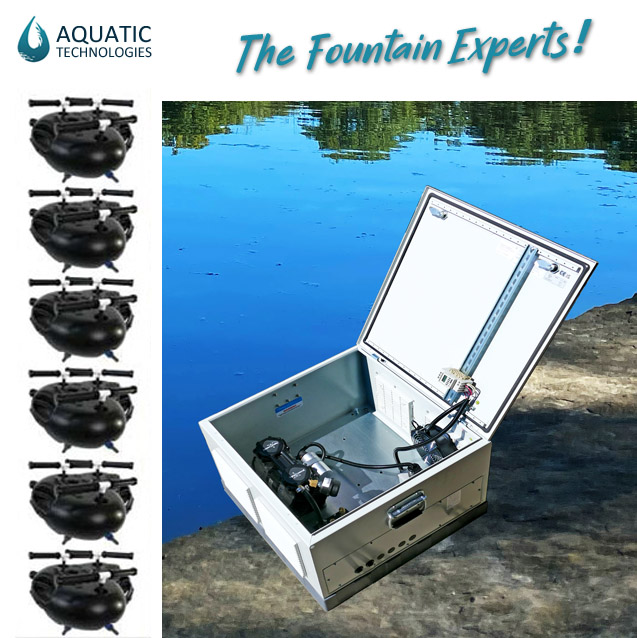

Air Pro Lakebed Aeration System

Air Pro Lakebed Aeration System

Lake bed aeration systems are the perfect low-cost and highly efficient solution to increasing oxygen levels in your water.

The Air Pro Subsurface Aerator is perfect for large deep ponds, dams or lakes.

  • Weather resistant outdoor cabinet
  • Mounting pad (no concrete pad required)
  • Area aerated: Each pod aerates up to 3,000m²
  • Single or twin motor available
  • Minimum operating water depth: 3m (will work in shallow water bodies less efficiently)
  • Power source: Plug into 240V outlet

Description

What comes in the kit?

  • Outdoor weather resistant cabinet
  • Compressor (your choice of single or double)
  • Diffuser Pods (choose from 1-6 pods)
  • Self-Weighted Air Tubing (38m, 50m, 100m, or 152m)
  • Standard 240V power cable

Single Air Pro Compressor units will house between 1-3 diffuser pods. Double Air Pro Compressor units will house between 1-6 diffuser pods.

Why is aeration important?

Simply put, water with low oxygen saturation can be a breeding ground for harmful bacteria and can create a toxic environment where materials don’t break down properly. Without aeration of your water, oxygen particles may be suspended from reaching the entire water column. This can cause unstable conditions and a host of problems from foul smells to dead fish and other issues. What’s more, is that bodies of water can develop what we call ‘stratification’ over time. This is when warm, oxygenated water on the surface is separated from cold, deoxygenated water closer to the bottom. This can cause harmful toxic build-up in the bottom of your lake, pond or dam and create bad smells, toxicity and an overall unsavoury environment for humans and animals alike. Our lake bed aeration systems offer a simple and ready-to-install solution to keep your waterways rich in oxygen and free of any toxic-buildup. Each diffuser will service up to 3,035m2. The AirPro series can aerate any size of water body and is capable of running between 1 to 6 diffusers per system. The AirPro professional series features a powder-coated aluminium enclosure with a LIFETIME WARRANTY against corrosion in freshwater applications.   Outdoor Cabinet:

  • Powder Coated Aluminium Outdoor Enclosure
  • 24 Hour Timer
  • High-output cooling fan included
  • 61cm x 61cm x 8cm Polypropylene Equipment Base eliminating the need for a footing at site
  • Lifetime Warranty

Air compressors:

  • Half HP Dual Piston Compressors – Oil Free
  • Compressors (available as single or twin)
  • Compressors only require maintenance every 2 years (except air filter)
  • Quiet operation – Rated at less than 65 decibels (inaudible at 8 meters)
  • Timer included for operation of Lake bed systems
  • 2-Year warranty

AirPod Diffusers:

  • Diffuser membranes are self-cleaning
  • Self-weighted bases – no need to add gravel or weights
  • Check valves incorporated to prevent backflow
  • Diffusers release air centimetres from the pond bottom while still preventing disruption of settled organics
  • Diffuser membranes feature thousands of minute holes to optimise smaller air bubbles, entraining more water and creating greater volumes of water movement
  • 5-Year warranty

Airlines:

  • Self-weighted so they sink out of sight without weights
  • Lead-free
  • 10-Year warranty

The Lake Bed Aeration systems come with everything you need ready for installation:

  • The compressor unit, complete with enclosure, timer and base
  • The required lengths of self-weighted air tubing
  • Self-weighted diffusers
  • Air tubing fittings (as required)
  • Standard 240v power cable



How To Use

The Lake Bed Aeration systems come with everything you need ready for installation:

  • The compressor unit, complete with enclosure, timer and base
  • The required lengths of self-weighted air tubing
  • Self-weighted diffusers
  • Air tubing fittings (as required)
  • Standard 240v power cable



Targets

WHY IS AERATION IMPORTANT? Over time water ways can develop stratification which is a separation of the warmer top layer of water and the colder deeper layers. Whilst the top layer receives oxygen from the air and supports marine life, the bottom layer loses oxygen through anaerobic breakdown of organic matter which can result in foul smells, fish kills, poor clarity, aquatic weed and algal growth. By adding aeration, you can eliminate unwanted odours, promote beneficial bacteria growth, reduce aquatic weeds and algae and improve water clarity.   WHAT IS LAKE BED AERATION? Lake Bed Aeration systems oxygenate water bodies by pushing air from an on-shore compressor through airlines to diffusers that sit on the bottom of the water way. Because diffusers are located on the bottom and force oxygen and large amounts of water to the surface they are superior to mechanical aeration both in terms of performance and cost. By introducing oxygen into the deep water layer organic matter can be broken down aerobically reducing toxic gases and promoting beneficial bacteria inhibiting growth of algae and weeds as they are starved for a food source.

FAQ

What is Thermal Stratification?

Thermal stratification is the layering of warmer, oxygen rich water near the surface on top of cooler, oxygen deprived water towards the bottom. The transition between these layers is called the thermocline. The differences in water density at the thermocline prevents the water from mixing. Our Aerators use diffusers to pump air through the diffuser membranes. This air then makes its way to the pond surface in the form of millions of tiny bubbles. As these bubbles travel upward through the layers of thermal stratification they entrain water with them. This water is carried to the surface where it becomes naturally oxygenated, thus aerating the waterbody.

What are some benefits of aeration?

By aerating and circulating from the pond bottom up, the toxic gasses previously trapped under the thermocline can escape, thereby providing a balanced habitat for aquatic life. The aeration also creates aerobic conditions near the pond bottom where microbial processes can naturally break down nutrients which would otherwise be used in the production of noxious aquatic weeds and algae. Lake bed aeration systems are the most efficient and cost effective way to aerate water bodies. Our lake bed aeration systems provide a complete ready to install solution for waterways with low oxygen levels, sludge build up and temperature variances in the water column (stratification).

WHY IS AERATION IMPORTANT?

Over time water ways can develop stratification which is a separation of the warmer top layer of water and the colder deeper layers. Whilst the top layer receives oxygen from the air and supports marine life, the bottom layer loses oxygen through anaerobic breakdown of organic matter which can result in foul smells, fish kills, poor clarity, aquatic weed and algal growth. By adding aeration, you can eliminate unwanted odours, promote beneficial bacteria growth, reduce aquatic weeds and algae and improve water clarity.

WHAT IS LAKE BED AERATION?

Lake Bed Aeration systems oxygenate water bodies by pushing air from an on-shore compressor through airlines to diffusers that sit on the bottom of the water way. Because diffusers are located on the bottom and force oxygen and large amounts of water to the surface they are superior to mechanical aeration both in terms of performance and cost. By introducing oxygen into the deep water layer organic matter can be broken down aerobically reducing toxic gases and promoting beneficial bacteria inhibiting growth of algae and weeds as they are starved for a food source.
